2UUL MC6558 65X-58X Professional Repair Microscope with Built-in Lighting

2UUL MC6558-M1 Trinocular Stereo Microscope is a professional inspection tool designed for phone repair, PCB inspection, micro-soldering, and precision electronics work. Featuring a 6.5X to 58X continuous zoom magnification, WF10X/23mm high eyepoint wide-angle eyepieces and dustproof cover, 0.4X CTV adapter, adjustable LED lamp and 0.65x lens. Delivers clear, detailed views of tiny components with minimal eye strain. This microscope is essential for repair technicians working on iPhone motherboards, BGA soldering, and micro-component inspection.

Features:

1. 6.5X-58X Continuous Zoom – Smooth magnification range covers a wide variety of inspection and repair tasks.

2. Built-in Adjustable LED Ring Light – 32 pieces of 5mm LED beads with adjustable brightness, Shadow-free, even illumination for clear, detailed views.

3. WF10X/23mm High Eyepoint Eyepieces – Wide-angle, large field of view with comfortable eye relief.

4. Trinocular Port – Supports camera and CCD connection for photo/video capture and teaching.

5. Large Field of View – 31.4mm at 6.5X to 3.7mm at 58X for comprehensive component inspection.

6. Durable Metal Construction – Sturdy base and column for stable, wobble-free operation.

7. Professional-Grade Optics – High-quality glass lenses deliver sharp, clear images.

8. Versatile Applications – Ideal for phone repair, PCB inspection, micro-soldering, and precision assembly.

Technical Specifications:

Product Name: 2UUL MC6558-M1 Trinocular Microscope

Magnification: 6.5X – 58X (continuous zoom)

Eyepieces: WF10X/23mm high eyepoint wide-angle

Field of View: 31.4mm (6.5X) – 3.7mm (58X)

Trinocular Port: Supports camera and CCD connection

Lighting: Built-in adjustable LED ring light (32 LEDs)

Dimensions: 38 × 26 × 37cm

Package Dimensions: 43 × 35 × 27cm

Gross Weight: 5.5kg

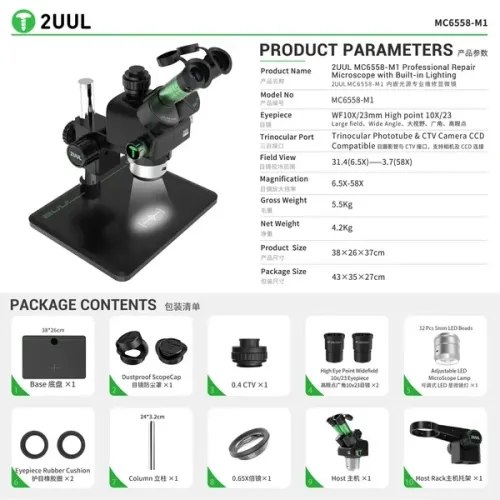

Product Parameters:

Model No.: 2UUL MC6558-M1

Eyepiece: WF10X/23mm, high-eyepoint wide-angle, large field of view

Trinocular Port: Compatible with phototube and CTV interface, supports camera and CCD connection

Eyepiece Field of View Range: 31.4 (at 6.5X) – 3.7 (at 58X)

Eyepiece Magnification: 6.5X – 58X

Package Contents: Base ×1, Dustproof eyepiece cap ×1, 0.4× CTV adapter ×1, High-eyepoint wide-angle 10×/23 eyepieces ×2, Adjustable LED microscope light ×1, Eyepiece rubber cushions ×2, Pillar/column ×1, 0.65× auxiliary lens ×1, Main host ×1, Host bracket ×1
