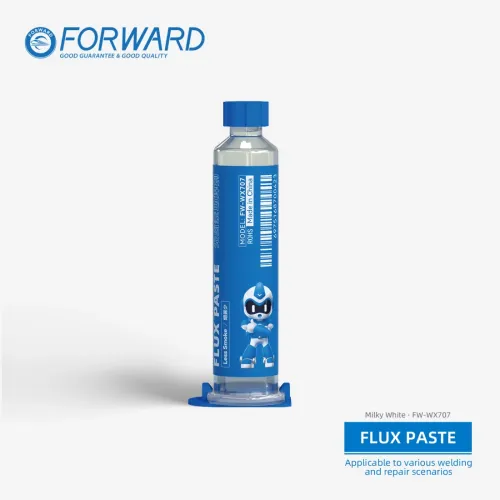

Forward FW-WX707 Halogen Free Flux Paste-Guard Series

The Forward FW-WX707 Halogen-Free Flux Paste – Guard Series is an advanced, high-performance soldering flux formulated specifically for precision micro-soldering, high-density smartphone logic board repairs, and complex BGA/CPU reballing. Engineered under Forward's Guard Series benchmark, this formulation provides robust thermal buffering to safeguard delicate copper circuit traces and micro-components against excessive thermal shock, oxidation, and pad delamination during hot air rework.

Completely halogen-free, the FW-WX707 eliminates aggressive halides (fluorine, chlorine, bromine), substantially reducing toxic fumes and preventing post-soldering copper corrosion. Its high surface insulation resistance (SIR) ensures zero electrical conductivity under high-density BGA matrices, eliminating the risk of parasitic leakage or boot loop faults. Supplied in a standard 10cc syringe dispenser complete with a push booster rod and precision metal dispensing needles, it delivers exact, drop-by-drop volumetric application directly to the target area without benchtop spillage.

Key Capabilities & Workshop Advantages

• Guard Series Thermal Defense: Creates a protective thermal shield across the component interface, preventing pad scorching and bridging during prolonged hot-air reflow cycles.
• 100% Halogen-Free Chemistry: Formulated without reactive halides to safeguard technician respiratory health, prevent corrosion on delicate copper traces, and meet RoHS compliance.
• High Surface Insulation Resistance (SIR): True non-conductive properties ensure that microscopic residues trapped underneath tight BGA underfill layers cannot cause secondary circuit leakage.
• Controlled Non-Splattering Fluidity: Melts into a smooth, uniform liquid film without violent boiling, keeping microscopic 01005 passives and direct-heat reballing stencils stable and aligned.
• No-Clean Transparent Residue: Leaves a clear, non-sticky, chemically inert boundary layer post-soldering that does not require mandatory chemical washing.
• Rapid Oxide Deoxidation & Wetting: Instantly dissolves tough oxide skins on nickel, gold, and tin-lead pads to ensure concave, mirror-finish solder fillets with high structural integrity.
• Syringe-Fed Pinpoint Dosing: The 10cc barrel with mechanical push rod prevents waste, eliminates flux evaporation, and enables pinpoint dispensing under microscopes.

Technical Specification Matrix

Recommended Bench Workflows

• CPU & Baseband BGA Reballing: Provides uniform, smooth surface tension across microscopic stencils to ensure even ball formation without bridges.
• Double-Decker Sandwich Board Layering: Coats middle-frame solder rings during preheater soldering to facilitate clean inter-layer connections without bridging.
• FPC & Battery Connector Replacement: Pre-tins and reflows high-density connector pins rapidly before plastic housings absorb damaging heat.
• Micro-Jumper Wire Installation: Pre-wets microscopic copper trace points for immediate, clean solder adhesion before curing with UV solder mask.

Package Contents:

• 1 × Forward FW-WX707 Halogen-Free Flux Paste (10cc Syringe)
• 1 × 10mL Syringe Booster Push Rod
• 2 × Precision Metal Dispensing Needles
