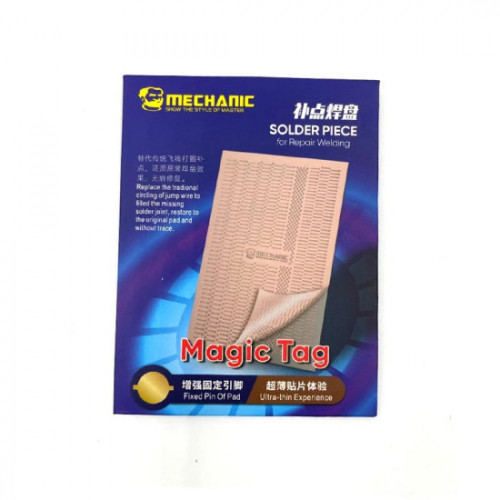

MECHANIC MAGIC TAG DOT REPAIRING SOLDERING LUG FOR PCB REPAIR

mechanic-magic-tag-dot-repairing-soldering-lug-for-pcb-repair

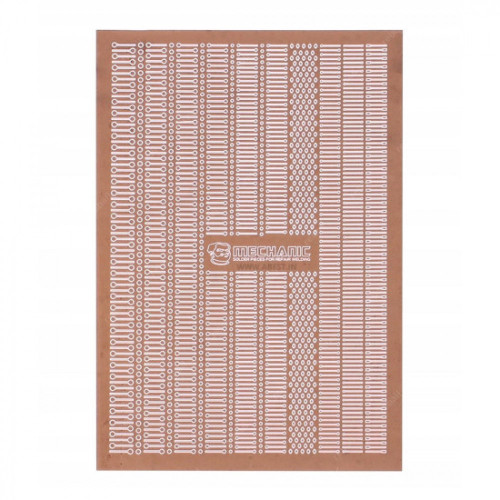

Mechanic Dot-Repairing Soldering Lug replace the traditional jumping wire, For Fixing Soldering Spot on Phone Welding Plates.Mechanic 2nd Generation Enhanced Version Solder Piece For Repair Welding,Replace the tradional circling of jump wire to filled the missing solder joint,restore to the original pad and without trace.

Feature:

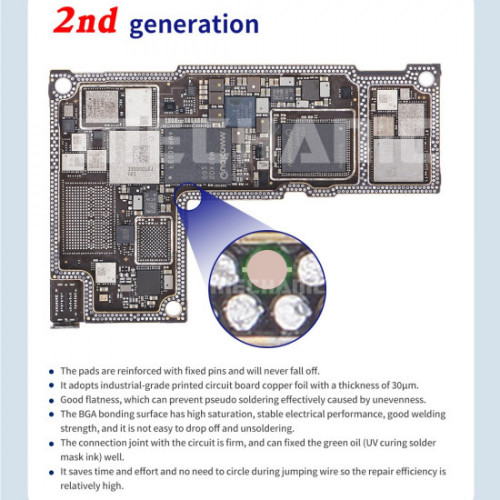

2nd Generation Enhanced Version

New technology of Repair Welding

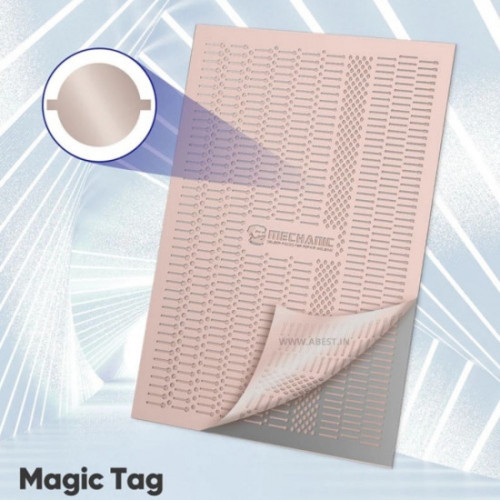

Fixed pin of pad : the pads are reinforced with fixed pins and will never fall off.

Ultra-thin experience: it adopts industrial-grade printed circuit board copper foil with a thickness of 30um

Strong bond: The connection joint with the circuit is firm,and can fixed the green oil well.(UV curing solder mask ink)

Good flatness: good flatness,which can prevent pseudo soldering effectively caused by unevenness.

Save time and energy: it saves time and effort and no need to circle during jumping wire so the repair efficiency is relatively high.

Stable welding: The BGA bonding surface has high saturation,stable eledtrical performance,good welding strength,and it is not easy to drop off and unsoldering.

Applicable:

Applicable for dot-faded soldering pad with various shapes and models of soldering lug

Applicable for beauty the pad with seamless repairing

Use:

Effect After Repairing

Curling the wires to make jumper wires is no longer needed. After pads soldering, the double-layered motherboard can be installed to the testing fixture or recombined directly. Repair efficiency will be tremendously increased.
