ShortCam III Plus 4K Infrared Thermal Imaging PCB Motherboard Short Circuit Diagnostics

ShortCam III Plus 4K Infrared Thermal Imaging PCB Motherboard Short Circuit Diagnostics

Features:

• ShortCam III Plus PCB thermal imager, high-class quality specially designed for maintenance, high resolution 4K clarity, ultra-wide viewing angle, full-area scanning
• Double folding design, more convenient storage; WiFi connection, simple and easy to use; HDMI video output, seamless switching with microscope; Dual-light imaging, quick leakage detection
• The diagnostic tool boasts a full metal body, crafted through precision cutting and enhanced with aluminum alloy anodizing technology. This ensures excellent heat dissipation and EMC performance while preventing any paint from peeling from the body
• Save space and convenient to use, the bracket can be folded twice, and it is easy to store and carry
• The product has the industry's first 4K clarity and integrates an ultra-clear algorithm that can generate 256*192 high-resolution thermal imaging, the details of tiny leakage components are clear and high-definition, suitable for all kinds of fault diagnosis
• Can be detected different sizes of PCB, one-for-all application scenarios such as mobile phone computer and vehicle motherboard repair
• Dual-light imaging quick leakage detection, it supports same-time display of visible light and infrared, and can easily "quickly check" the temperature rise caused by tiny leakage
• Multiple image display modes, it supports multiple image display modes including thermal imaging, visible light, dual-light fusion, and a one-click quick check
• HDMI display, quick switching between microscope and display, the industry's first HDMI video output allows quick switching between microscopes without a computer, greatly simplifying the repair process
• Diverse communication methods to improve user experience, no configuration required, just plug and play, it can be connected to Apple, and Android phones and laptops via WiFi and Type-C, improving user convenience
• Equipped with PC and mobile APP client analysis software, it supports multiple devices to be connected and used at the same time, simple software interface, real-time fault records check, which improves efficiency and shows professionalism
• Application Scenarios: Mobile Phone Repair; Vehicle Repair; Graphics Card Repair; Digital Reviews; Process Test

Specification:

Thermal Camera:

• Detector Type: Uncooled Vanadium Oxide (VOx)Detector
• Resolution: 256*192
• Wavelength Range: 7.5~13.5um
• Field of View: 56*42°
• Frame Rate: 25Hz

Visual Camera:

• Resolution: 3840*2160 4K 800W

Interface and Display:

• Display Mode: Visual Thermal Imaging Quick Check
• Interface: Type-C USB2.0/WiFi/HDMI
• Image Display Format: JPG

• Input Voltage: 12V DC
• Power Consumption: 6W
• Storage Temperature: -20℃~60℃
• Working Environment: 3℃~45℃
• Measurement Distance: 16.5cm
• Measurement Accuracy: ±3℃or±3%(Take the maximum value)
• Measurement Range: -20°℃~550℃
• Supported Platforms: Android 6.0, iOS 12.0, Windows 7 and above
• Dimension: 192.2mm*183.3mm*203.7mm
• Weight: 942.3g

Package includes:

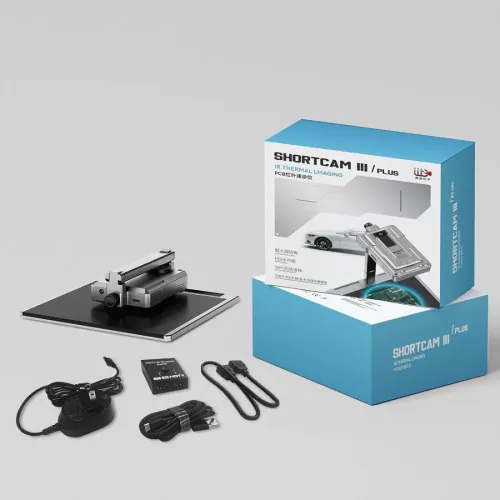

• 1 x Diagnostic Instrument
• 1 x Type-C Cable
• 1 x HDMI Switcher
• 1 x HDMI Cable
• 1 x Power Adapter
