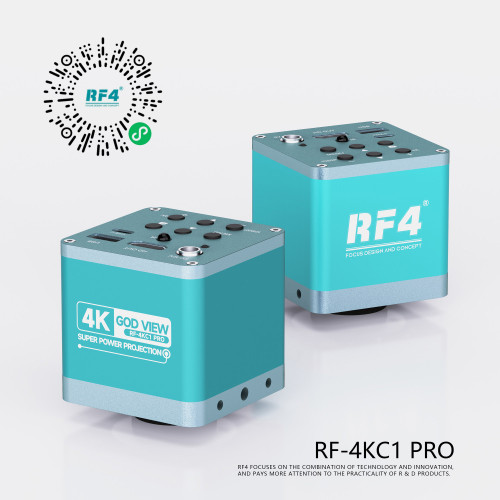

RF4 RF 4KC1 Pro 4K Ultra HD Microscope Industrial Camera For Electronic Repair

RF4 RF 4KC1 Pro 4K Ultra HD Microscope Industrial Camera Real time Display Current Variation Curve

Key Features:

• Resolution: Supports 4K resolution (3840x2160) at 30 frames per second (fps) via HDMI output, and can also switch to Full HD (1080P) at 60fps.
• Sensor: Utilizes a 1/2.8-inch CMOS sensor with an 8-megapixel photo capture resolution.
• Connectivity: Features versatile connectivity including HDMI and USB outputs, along with a TF (microSD) card slot for direct image and video storage (up to 64GB).
• Compatibility: Designed with a standard C/CS mount interface for compatibility with a wide range of trinocular stereo microscopes and lenses.
• Advanced Diagnostics: The "Pro" version uniquely offers real-time monitoring of electrical current change trends of the device under different load conditions, which is essential for circuit analysis.
• Software & Control: Includes built-in image adjustment software (exposure, white balance, contrast) and advanced measurement capabilities for component sizing. A remote control is included for ease of use.

Applications:

The RF4 4KC1 Pro is an indispensable tool for professionals involved in:

• Mobile phone and laptop motherboard repair
• Printed Circuit Board (PCB) inspection and BGA chip soldering
• Detailed work in fields like geology, jewelry, and watchmaking.

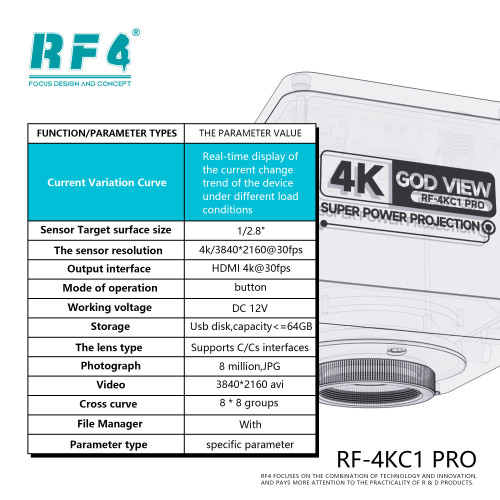

Specification:

• Current Variation Curve: Real-time display of the current change trend of the device under different load conditions
• Sensor Target surface size: 1/2.8"
• The sensor resolution: 4K/3840*2160@30fps
• Output interface: HDMI 4K@30fps
• Mode of operation: Button
• Working voltage: DC 12V
• Storage: USB disk, capacity <=64GB
• The lens type: Supports C/CS interfaces
• Photograph: 8 million, JPG
• Video: 3840*2160 avi
• Cross curve: 8*8 groups
• File Manager: With
• Parameter type: specific parameter

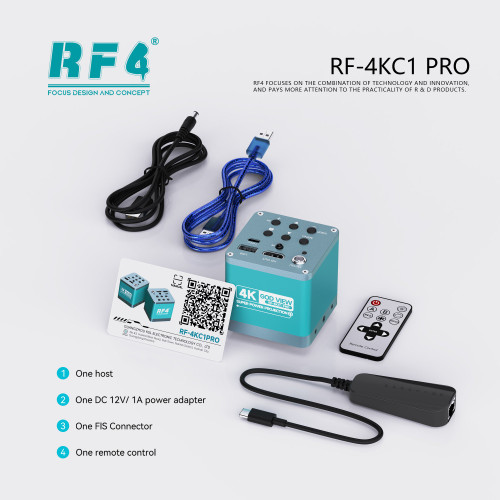

Package includes:

• 1 x Camera
• 1 x Power Adapter
• 1 x FIS Connector
• 1 x Remote Control
